Watch Ipg Ion Plating Machine

Environmental

Reasonable application, reduce pollution

Customization

According to your requirements, customize the service to match you.

High quality

High hardness and wear resistance

Delivery

Reduced Cycle Time
Send Request
  • 01 Overview
  • 02 Features
  • 03 Main Application
  • 04 Download
  • 05 Specifications

01 Overview

The Foxin IPG Ion Plating Machine is your go-to for giving watches a top-notch finish that’s both tough and stylish. This PVD coating machine taps into some pretty cool vacuum technology to make it happen. Here’s how it works: you pop the watch into a vacuum chamber, and a cathode arc source gets to work ionizing gold particles. Those particles zip over to the watch surface during the PVD coating process, settling into a sleek thin film coating that screams quality gold plating. It’s simple, yet totally effective.

What sets this apart is the PVD method—think precision and consistency wrapped into one. You end up with a gold PVD coating that looks amazing and holds up over time, perfect for jazzing up stainless steel watches. Whether you’re after that wow factor or a solid metal finishing solution, the Foxin IPG has you covered with a process that’s as reliable as it is impressive.

compliant with standard cetification

02 Features

Cathodic Arc Source: This feature uses a cool cathodic arc source to ionize the coating material, sending it straight to the watch to create a tough, thin PVD coating that sticks like a champ and looks amazing.

Vacuum Chamber: The watch sits comfy in a vacuum chamber, keeping everything clean and under control so the vacuum coating process goes off without a hitch.

Touch Screen Control Panel: Comes with a slick touch screen control panel that’s super easy to use—adjust settings, check the PVD coating process, and keep things running smoothly, all at your fingertips.

High-Precision Vacuum System: Thanks to its top-notch high-precision vacuum system, you get a steady vacuum technology setup that’s key to nailing those perfect metal coating results every time.

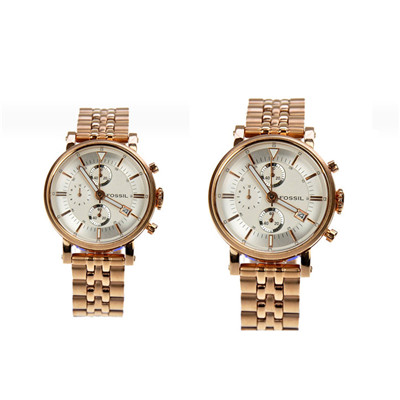

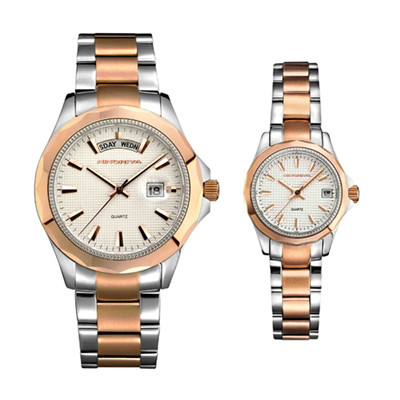

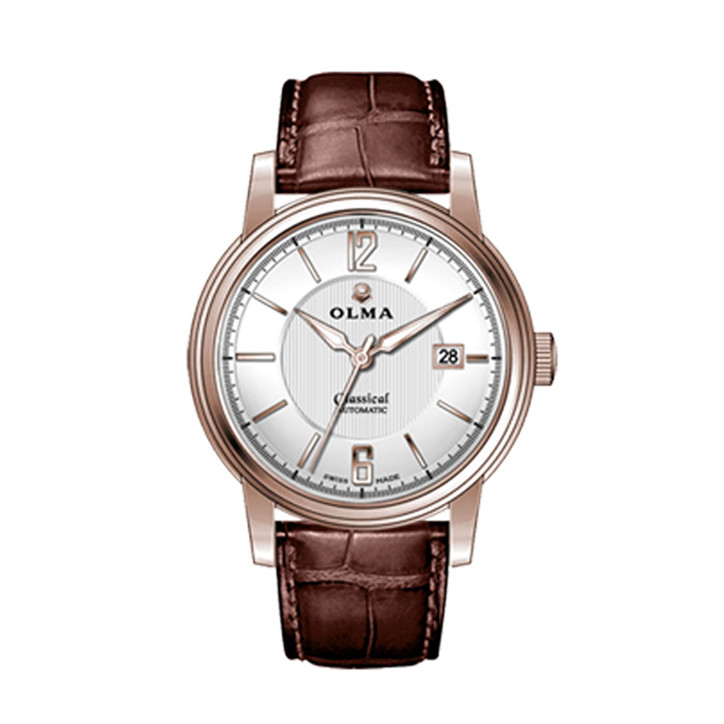

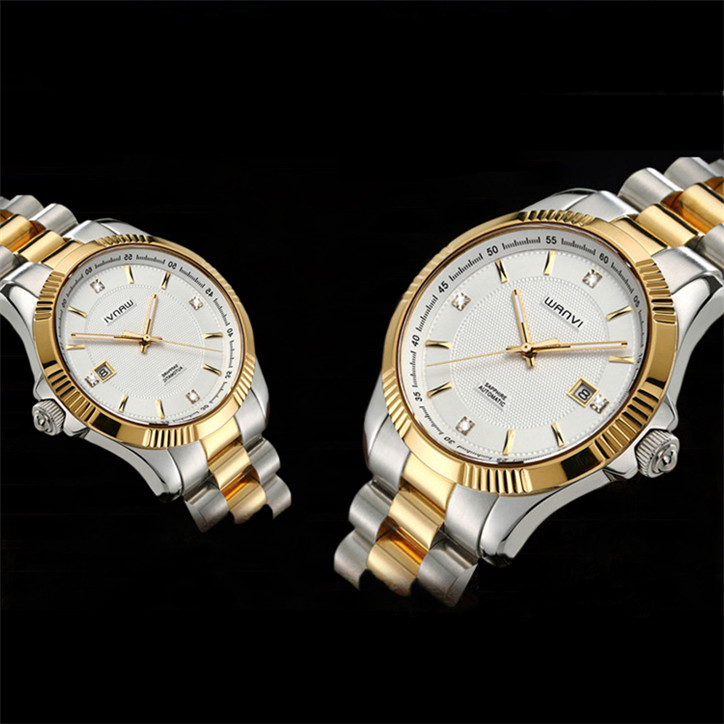

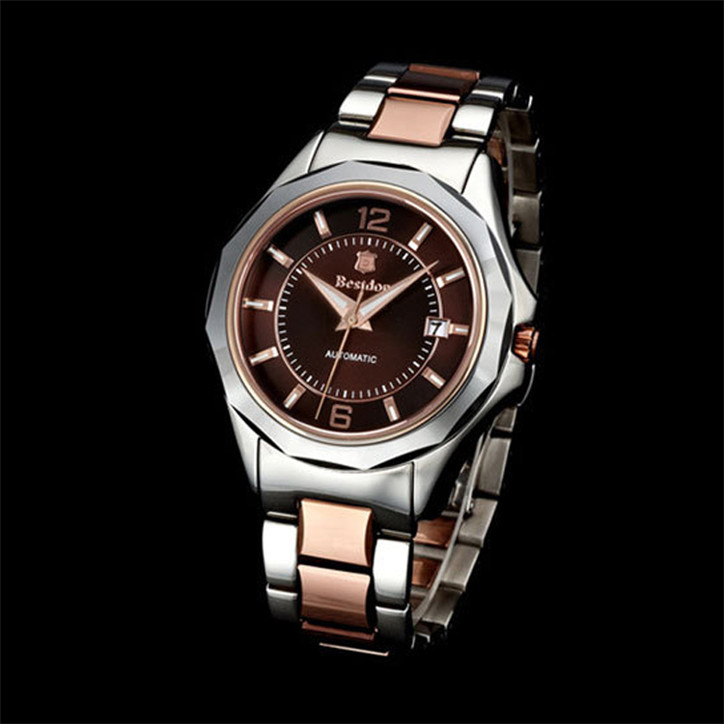

Gold Coating Options: Whether you’re into yellow gold, rose gold, or white gold, this machine’s got you covered with awesome gold PVD coating options that bring out a killer gold plating finish on any watch.

03 Main Application

1. Jewelry: This machine’s a game-changer for jazzing up jewelry—rings, bracelets, necklaces, you name it. With PVD coating, you can slap on durable, gorgeous finishes like gold plating and tweak ‘em to whatever your customers are into.



2. Automotive: Want to give car wheels or trim a slick upgrade? This thing lays down a sweet metal coating that looks killer and keeps rust and scratches at bay.



3. Electronics: It’s awesome for coating stuff like circuit boards and connectors. The PVD coating process makes ‘em work better and last way longer.



4. Decorative Coatings: From metal to plastic to glass, it churns out decorative coatings that turn heads. Plus, it’s tough enough to handle daily wear without fading.

Get Exclusive Plan

04 Download

Vacuum coating overview

174.38 KB
pdf

05 Specifications

Model FOXIN-IP-0710 FOXIN-IP-1012 FOXIN-IP-1212 FOXIN-IP-1412 FOXIN-IP-1612 FOXIN-IP-1813
Chamber Size(mm) Ф700×H1000 Ф1000×H1200 Ф1200×H1200 Ф1400×H1200 Ф1600×H1200 Ф1800×H1300
Industry Watch
Product Watch accessories, mobile phone accessories, glasses frames, clothing, lighting, sanitary ware, hardware bags, glass, ceramics, and plastic.
Coating Film Type Titanium
Vacuum System The vertical front door structure is equipped with air pumping system and water cooling system
Vacuum Measurement Maintenance pump + mechanical pump + Roots pump + diffusion pump or molecular pump (specific models can be configured according to customer requirements)
Vacuum measuring system One Pilani (MKS) One cold cathode (MKS) One thin film gauge (MKS)
Supply Type Dc power supply, intermediate frequency power supply, pulse power supply (bias power supply, arc power supply)
Ultimate Pressure No-load cold state 1.0-6.0 ×10-4Pa
Arc Source 4set-6set 6set-8set 8set-10set 10set-12set 14set-16set 16set-18set
Arc Source 200A-300A 200A-300A 200A-300A 200A-300A 200A-300A 200A-300A
Bias Power Supply 20KW/1set 20KW/1set 20KW/1set 30KW/1set 40KW/1set 60KW/1set
Magnetron power Supply 1set-2set 1set-2set 2set-3set 2set-3set 3set-4set 3set-4set
Rotation Multi-axis planetary male rotation, frequency control (controllable and adjustable)
Baking Temperature Controllable and adjustable from -300℃ to 450℃ to 600℃ (PID temperature control)
Gas The flow control and display system of 3-channel or 4-channel process gas is equipped with automatic gas filling system Argon, nitrogen, oxygen, acetylene, etc
Cooling Method Water cooling cycle, with industrial cooling tower or industrial chiller (chiller) or cryogenic system. (Provided by customer)
Mode of control PLC+ touch screen operation or computer control, manual, semi-automatic, automatic mode,
Supply Index Air pressure 0.5-0.8MPa, water temperature ≤25℃, water pressure ≥0.2MPa,
Warning Alarm the abnormal situation such as water shortage, overvoltage and undervoltage, circuit break, etc. of pump and target, and implement corresponding protection measures and electrical interlocking function.
Total Power 25~65KW 45~85KW 65~105KW 85~115KW 95~125KW 100~130KW
Output Frequency Voltage 380V±5%, frequency 50Hz (according to the customer's national electricity standard configuration)
Occupation Space 15~50m² 15~50m² 25~55m² 25~55m² 35~55m² 35~55m²
Remark Non-standard equipment can be designed and manufactured according to user requirements, and magnetron sputtering target and intermediate frequency twin pair target can be installed.
